WIRE MESH CABLE TRAY

  • Product Item : WIRE MESH CABLE TRAY
  • Category: Wire Mesh Cable Tray
  • Material:Mild steel/SS304/SS316L
  • Width:50mm/100mm/150mm/200mm/300mm/400mm/450mm/500mm/600mm
  • Height:55mm/105mm/155mm
  • Length:3000mm
  • INQUIRY   EMAIL

WM wire mesh cable tray, for light duty jobs, comes in standard height of 50mm, 100mm and 150mm.
WM wire mesh cable trays are ideal for commercial and data center cable management, providing a flexible way to adjust your cable trays to suit your job site applications. It can easily modify the horizontal and vertical transition connection accessories, and there are a variety of materials and surface treatments to choose from to meet environmental and aesthetic requirements.

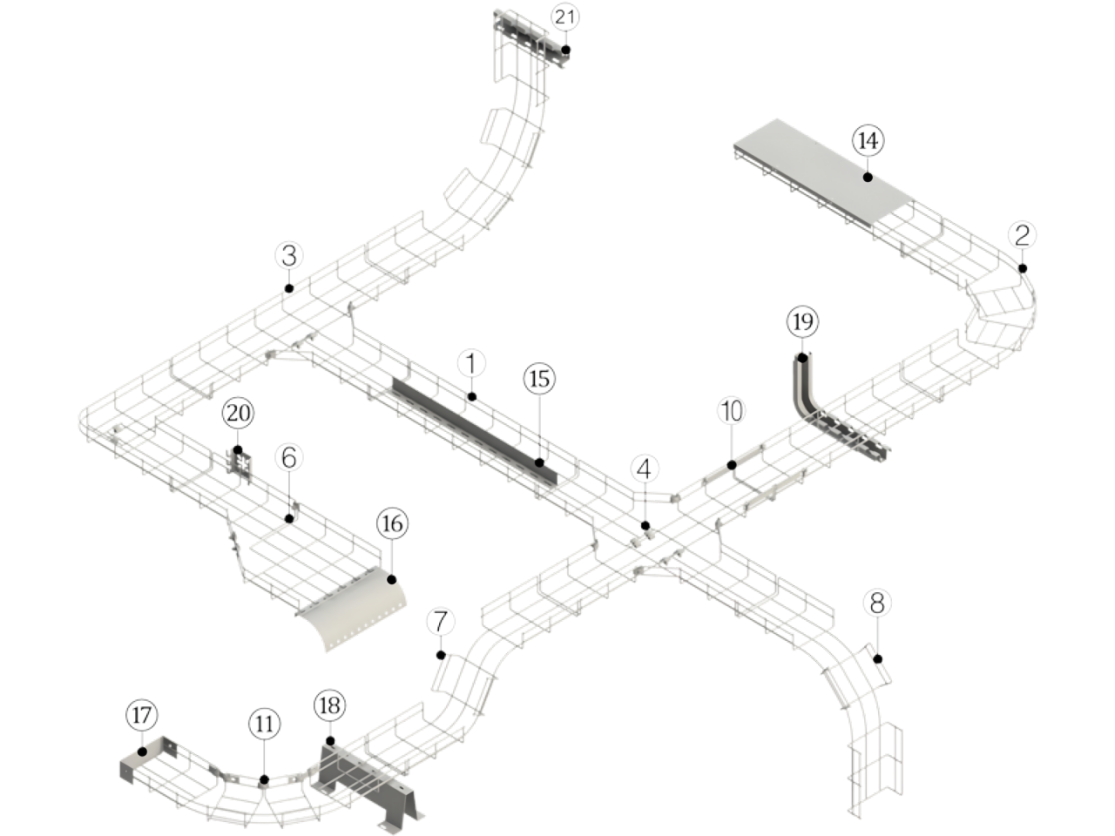

1. straight section: standard width comes in 100, 150, 300, 450, 600, 750, 900, 1000 and 1200mm ,length comes in 3000 and 6000mm, height comes in 100,125 and 150mm.
2. horizontal elbow: standard angle comes in 30, 45, 60 and 90 degress, standard radius comes 300,600 and 900mm.>
3. horizontal tee: standard radius comes 300,600 and 900mm.
4. horizontal cross: standard radius comes 300,600 and 900mm.
5. vertical tee: standard radius comes 300,600 and 900mm.
6. reducer: left reducer as shown, right and straight reducer supplied on request.
7. internal riser: standard radius comes 300,600 and 900mm.
8. external riser: standard radius comes 300,600 and 900mm.
9. combination riser part
10. splice connector
11. horizontal splice connector
12. vertical splice connector
13. reduction splice connector
14. straight flat cover
15. heavy duty cover clamp
16. universal cover clamp
17.flat cover for horizontal elbow
18. barrier strip
19. blind end
20. drop out plate
